Understanding How EDI Works Within Your Organization

Overview

EDI (electronic data interchange) is achieved once your organization and your trading partners both have an EDI software solution that communicates seamlessly together. But how does EDI work? It works by utilizing four main components that make up the EDI infrastructure:

  • Standards
  • Translation software
  • Integration
  • Communication (VAN)

To grasp just how EDI works, you’ll need to understand a few pieces and processes involved in EDI.

Onboarding Process

Before anything, your trading partners will each provide you with a unique implementation and onboarding guide. This will include the types of communication methods and versions, such as X12 or EDIFACT, and their relatable versions 4010, 5010 and other compliance standards. Included in the implementation guide will also be the frequency of transmission and the types of documents that will be required to exchange.

Now You Can Begin EDI Transmission

Once you have the above information, you can then prepare the documents for transmission. You will no longer need to print your EDI documents, such as a purchase order, since they will be filed electronically and communicated automatically. You may have different sources of data and methods available to create the EDI document, such as:

  • Manual entry view EDI software
  • Exporting computer-based data from a spreadsheet or database
  • Reformatting reports into data files
  • Enhancing existing applications, such as ERP, to create the output files for your needs that are ready for translation into the agreed-upon standard
  • Purchase and utilization of EDI software with a built-in interface for your EDI transactions

Document Translation

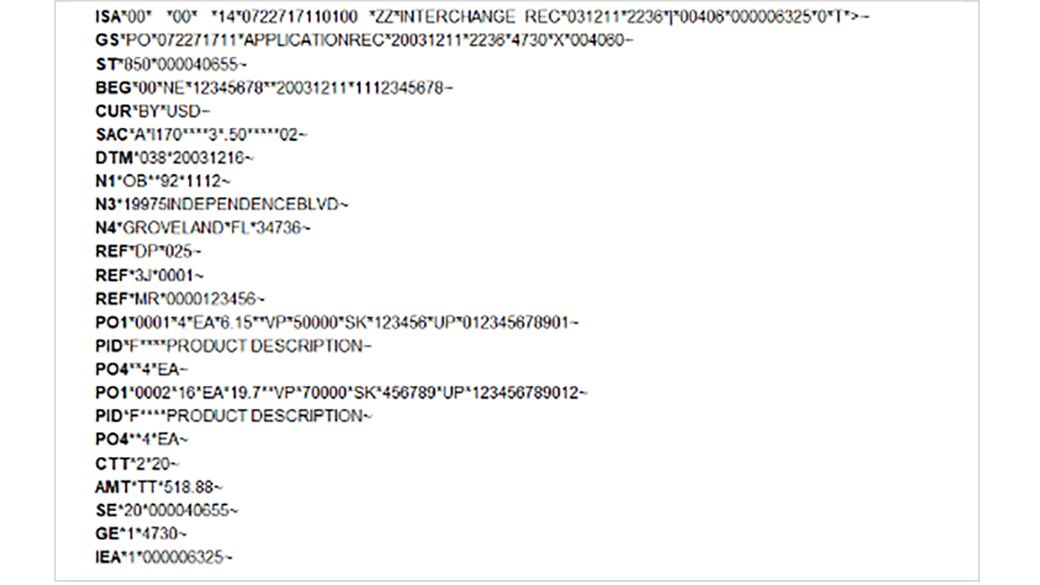

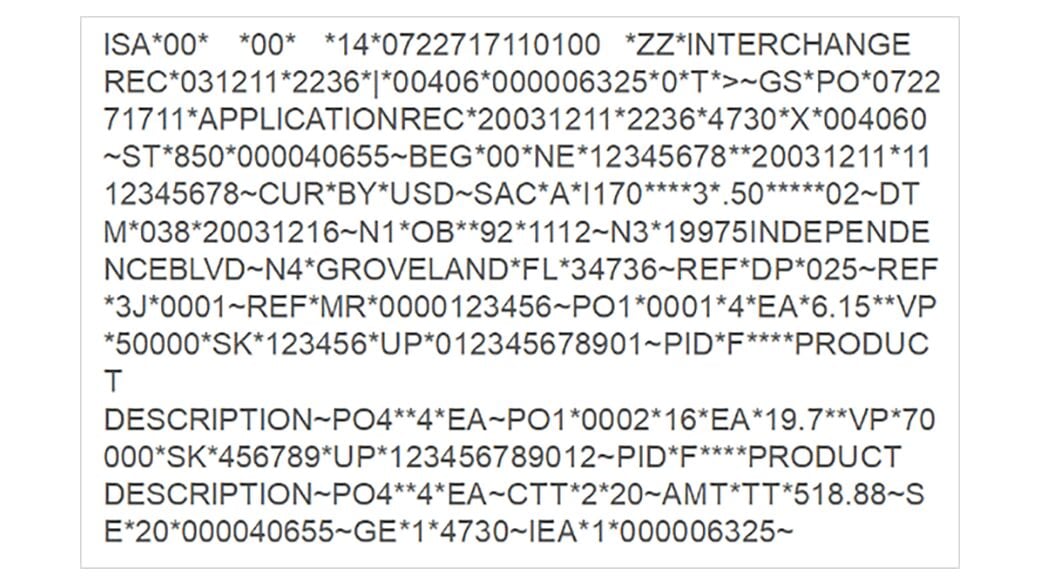

The next step is to begin translation of your documents into an EDI format. Below, you will see raw EDI data and formatted EDI data. Your EDI translation software will take raw EDI data and reformat it to be easy to read and understand. The EDI data has a few variables you should understand when reading the transmission of your documents. The below information provides the foundation for understanding EDI variables and how they operate within your EDI software.

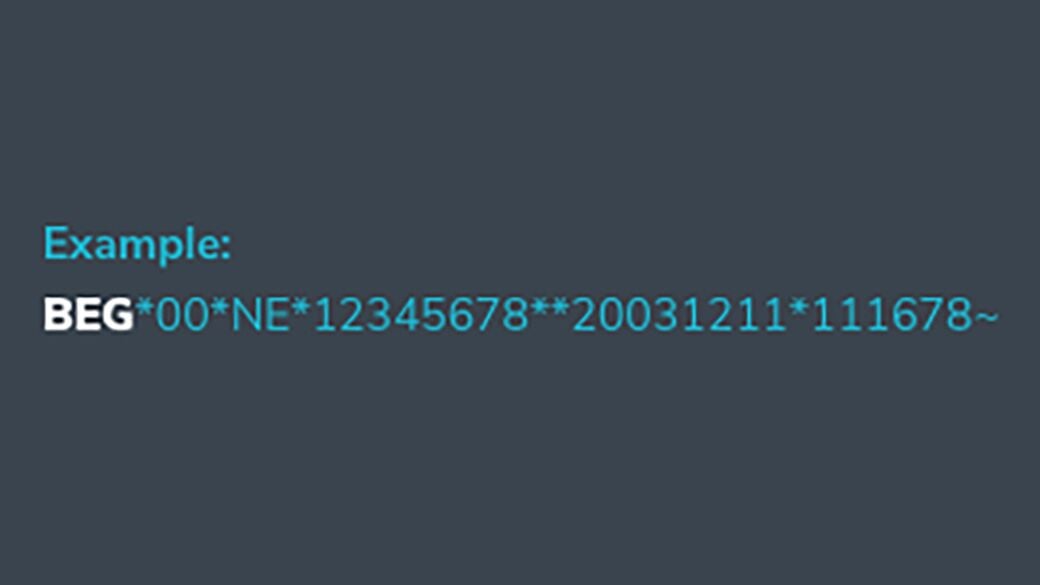

Segments:

Logically related data elements in a defined sequence.

  • Data segments consist of an identifier (ex. BEG), and one or more data elements, with separators and delimiters.

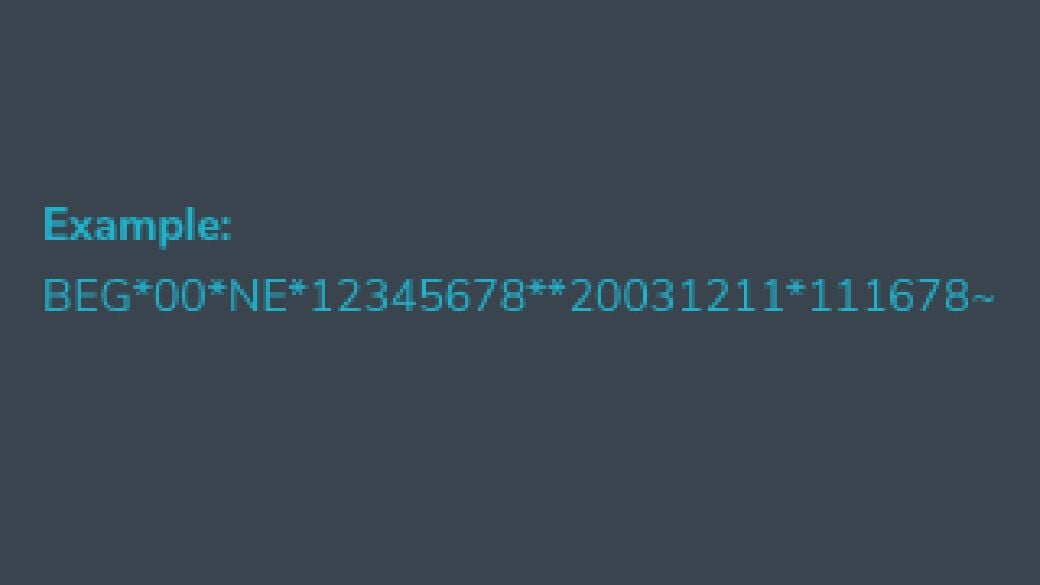

Data Elements:

The basic unit of information, a data element represents a singular fact; it may be a single character code, literal description or value number.

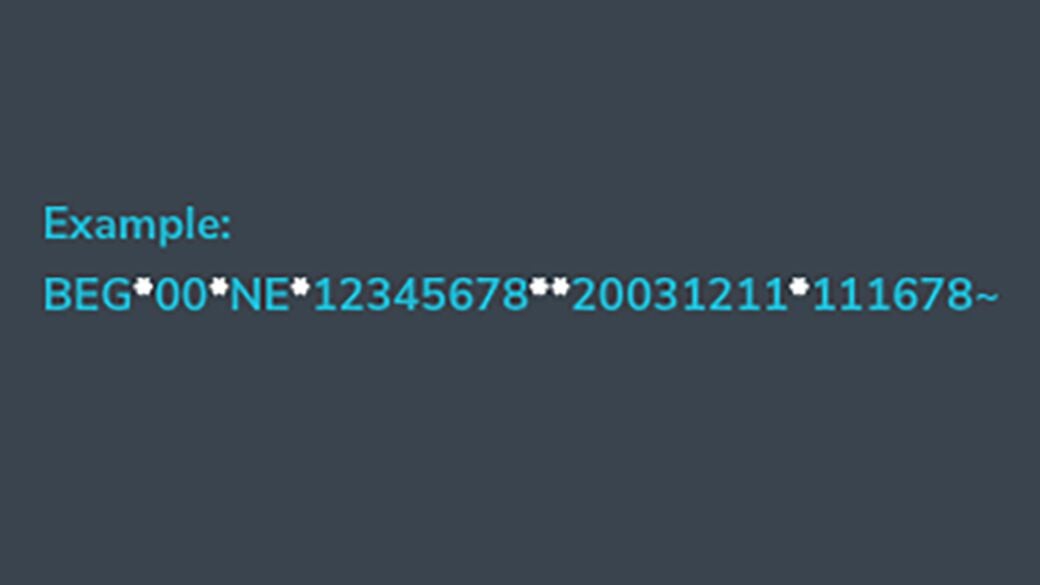

Delimiters:

Separates the data elements and cannot be used within the data itself.

  • Typically, a * is used

Terminators:

Unique characters that separate and terminate each segment.

Envelope:

Interchange envelope the electronic information that binds together a set of electronic documents being sent from one sender to one receiver.

Control Segments:

A segment that is used for transferring control information for grouping data segments.

  • Interchange: ISA/IEA
  • Functional Group: GS/GE
  • Transaction Set: ST/SE

Converting Internal Data

Now, you can begin to feed your electronic documents through your translation and mapping software, converting your internal data format into the agreed-upon standard format using the appropriate segments and data elements.

Using the EDI software package your organization has purchased, you will need to map your documents between your trading partners to define how your internal data is being mapped into EDI data.

Translation software is available to suit all computing environments and budgets, from large organizations with thousands of transactions to smaller organizations that may only need web-based EDI software to process a few hundred transactions per week. This process is for an in-house solution, not outsourced. Outsourced EDI solutions will be fully managed by your EDI provider.

EDI Transmission

The final stage of understanding EDI is to connect and begin transmission of your EDI documents with your trading partners. Once your documents have been translated internally to the compliant EDI format, they are ready to be transmitted to each of your trading partners. There are a few ways to do the translations:

  • Direct connection using AS2 or another secure internal protocol
  • Connecting through an EDI network provider (VAN) using your agreed-upon communication protocol and using the network provider to connect to your trading partner with their standards.
  • Some communication methods will be a combination of both depending on your trading partners’ specific requirements.

This is the foundation on which electronic data interchange operates.
